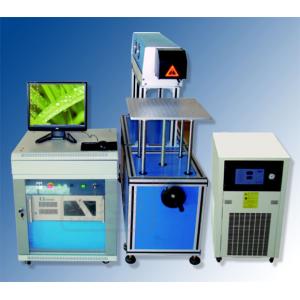

Plastic / Cloth/ Jeans / Cable CO2 Laser Marking Machine with CE
Quick Detail:
1,Mark on metal, plastic flat & cambered surface
2,High quality
3,Continuous work on 24 working hours
CO2 Laser Marking machines Product Features
1. The co2 laser marking machine takes CO2 laser tube as the laser source. By 2D fast-speed scanning mirrors swinging as the scheduled angles under the controlling of the computer, the laser focus on the surface of the work piece by F-θ lens to form images and realize marking and graph processing.
2. Using American made CO2 laser tube, with exquisite beam quality, stable power output, high marking precision, long working life time, and can work for 45,000 hours free of maintenance, then can be recharged by filling CO2 gas, suitable for users requiring batch production and high marking precision. Once invested, whole-life benefited.
3. Using fast-speed scanning mirrors, it can be the graph in shortest timefinish fine marking process.
4. Using the simple structure, abrasion and rusty against component, the system have the most stable performance and moving precision.
5. It can configure automatic configuration fixture, baiting production line.
It can mark data, serial number & bar code automatically.
Applications:
Applicable material: Non-metal materials such as cloth, tiles, paperboard, papers, leather, PU leather, trademark embroidering, plastics, bamboo & wooden products, woods, organic glass, acrylic, jade, shell, ox horn, animal sebum, double-color sheet, ABS board, PVC board, fiber and composite materials.
Applicable industry: It can be widely used in the glasses, button, plastics, sign, packaging, leather, cloth, ceramics, glass, crystal, rubber, electric appliance, craft ware, wood and bamboo ware industries.
|
Product Model:
|
XGY-CO2 10W XGY-CO2 30W XGY-CO2 55W XGY-CO2 100W XGY-CO2 150W
|
|
|
Laser Wavelength:
|
1064nm
|
|
|
Output Power:
|
10W 30W 55W 100W 150W
|
|
|
Power Stability:
|
(8h)＜ ± 1% rms
|
|
|
Quality of Laser Beam:
|
M2＜5 (@25A)
|
|
|
Pulse Repetition Frequency:
|
≤20KHz
|
|
|
Focusing Lens:
|
Standard (F160)
|
|
|
Marking Range:
|
70×70mm,100×100mm(standard),150×150mm,200×200mm,300×300mm(optional)
|
|
|
Marking Speed:
|
250 characters per second (Times New Roman and the character height is 1mm)
|
|
|
Smallest Marking Character:
|
0.3mm
|
|
